CYQ50A Diesel Powered Cutting Machine

Introduction:

CYQ50A diesel rebar cutter is used to cut steel bar for areas without access to power supply specially. It can be applied in construction sites, rebar processing factories, roads and bridges construction. As a specialized steel bar cutting machine supplier, our products can cut plain carbon steel, hot rolled round steel, deformed steel, flat steel and square steel.

Features:

1. It is driven by diesel engine, which enables areas without access to electricity have the possibility to cut steel bar.
2. Diesel rebar cutter is with good lubricating performance and can work for long time.
3. It adopts antifriction bearing which can reduce friction.

Advantages

Specifications of steel bar cutting machine:

Item		CYQ50A
Cutting Capacity	Steel Rod	≤Φ50mm
	II Rebar	≤Φ40mm
	Max Flat Steel	80×18mm
	Max Square Steel	40×40mm
Spindle Speed		7rpm

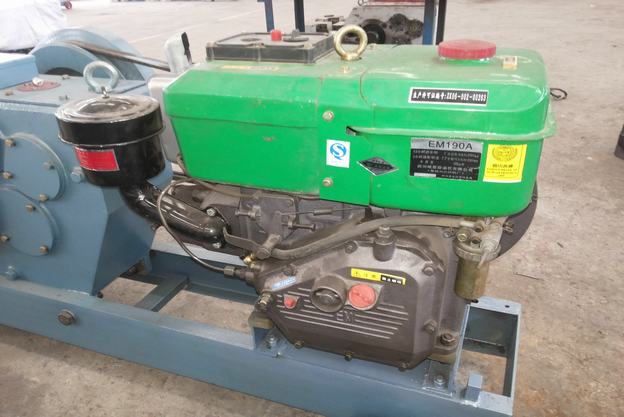

Diesel Motor Model		EM190A
Diesel Motor Power		7 KW/12h
		7.7 KW/h
Weight		680kg
Dimension(L×W×H)(mm)		1800×520×840

Relate equipments/accessories of diesel rebar cutter:

It is composed of road wheel, rack, driving structure, machine body, clutch system, blade, etc.
