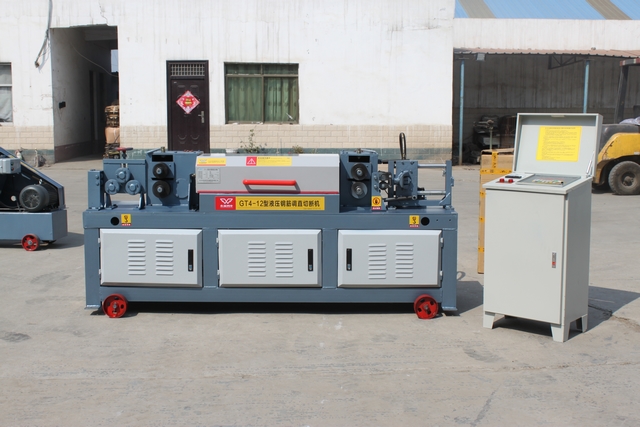

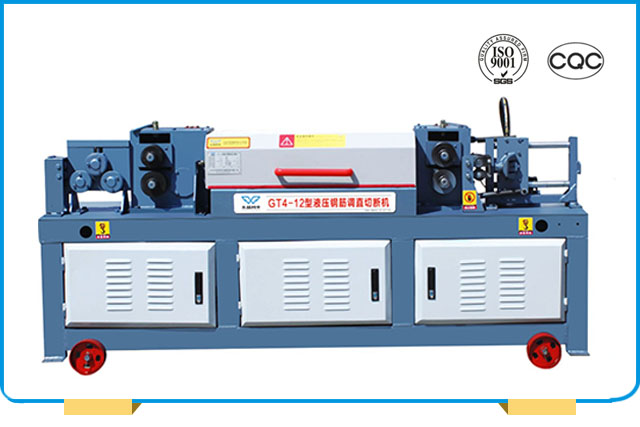

GT4-12 CNC Rebar

Introduction:

As a recognized CNC rebar cutter supplier in China, our hydraulic straightening and cutting machine shares large market. It is applied to plain carbon steel, hot rolled steel rod and deformed steel bar of reinforced concrete. It can be widely used in construction industry, such as rebar process factories, road and bridge construction, highway construction, airport construction, railway construction and mine protection, etc.

Features

1. Our CNC rebar cutter is with high efficiency and fast straightening speed.
2. It makes full use of material and has less material loss.
3. It is fully CNC control, easy to operate and maintain.
4. Hydraulic straightening and cutting machine is with competitive price and low energy consumption.

Specification:

Capacity	Steel Rod	Φ4-12mm
	Rebar	Φ4-10mm
Cutting Length		500mm to up
Cutting Error		±0.5cm
Speed		42m/min
Straighten & Traction Motor		11KW
Pump Motor		4KW
Voltage		380V/3phase
Straightening Degree		±2mm/m
Whole Weight		1000kg
Dimension(L×W×H)(mm)		2300×800×1100
Motor Optional		220V/415V/440V 50HZ/60HZ
