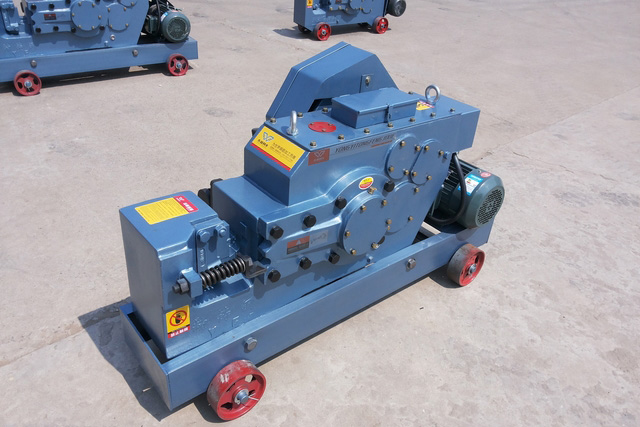

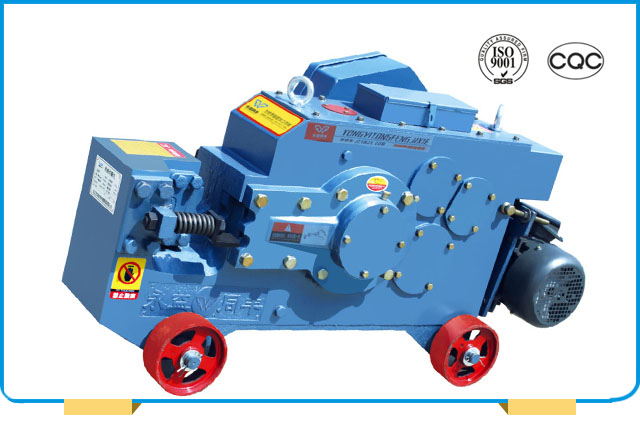

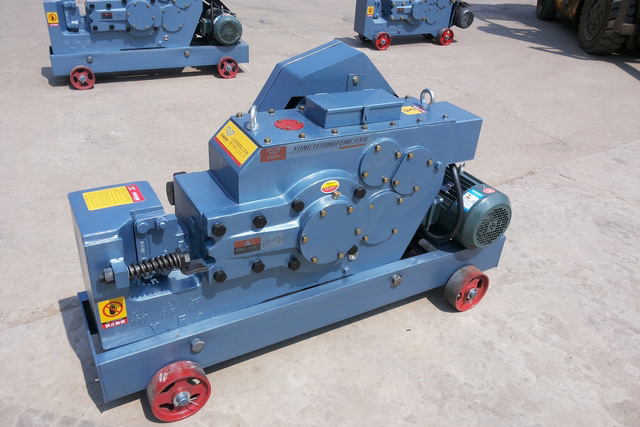

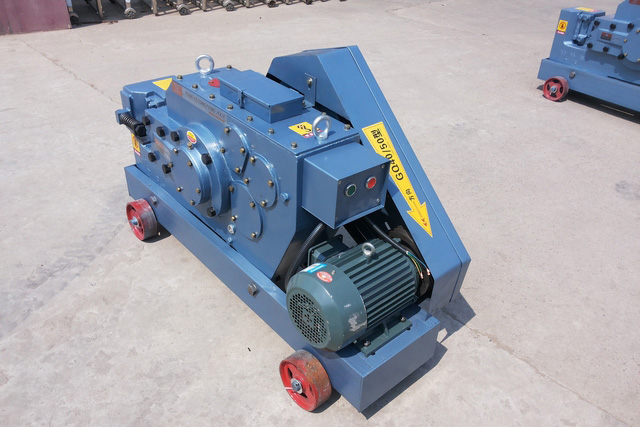

GQ42 Rod Cutting Machine

Introduction:

Steel rod cutting machine can cut round steel 32 times per minute and can be used in construction sites, rebar processing factories, roads and bridges building sites, etc. As a recognized rod cutter supplier, our products are with high cutting speed and long working life.

Features:

1. It has low energy consumption and high performance.
2. Steel rod cutting machine for dia.40mm steel rod is easy to move with rolling type truckles.
3. It has good lubricating property, and can be used for over three months continually when getting enough fuel (8-12kg).
4. It is with low energy consumption as it adopts antifriction bearings with less resistance.
5. Our rod cutters have long working life as it uses high rigidity tool apron and connecting rod.
6. All core components are self produced, which can ensure quality.
7. Gear adopts 500 nodular cast iron, which ensures it can work under heavy load.

Why Choose Rod Cutting Machine from FengYiDa Machinery?

Specifications of steel rod cutting machine:

Item		GQ42
Cutting Capacity	Steel Rod	≤Φ40mm
	II Rebar	≤Φ32mm
Cutting Frequency		32times/min
Motor Power		3KW-3phase
Voltage		380V
Weight		420kg
Dimension(L×W×H)(mm)		1250×500×730
Optional		220V/415V/440V 50HZ/60HZ

Relate equipment/accessories:

It highly suggested to order the blade and bakelite plate.
